Product Details:
| Place of Origin: |
Dongguan City,Guangdong province,China |
| Brand Name: |
Chuangwei |
| Certification: |
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000 |
| Model Number: |
CWPE |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Set |
| Price: |
Negotiable |
| Packaging Details: |
seaworthy plywood case,safe, no need to fumigated |
| Delivery Time: |
within 7 days after receipt the payment. |
| Payment Terms: |
T/T ,L/C |
| Material: |
PCB,Die |
Application: |
Board,Rigid PCB |
| Control Mode: |
Auto,Hand,Electric |
Product Name: |
PCB Punch |
| Drive: |
Pneumatic |
Shape: |
Hole |
| Highlight: |
pcb depaneling machine
,
pcb assembly machine
|

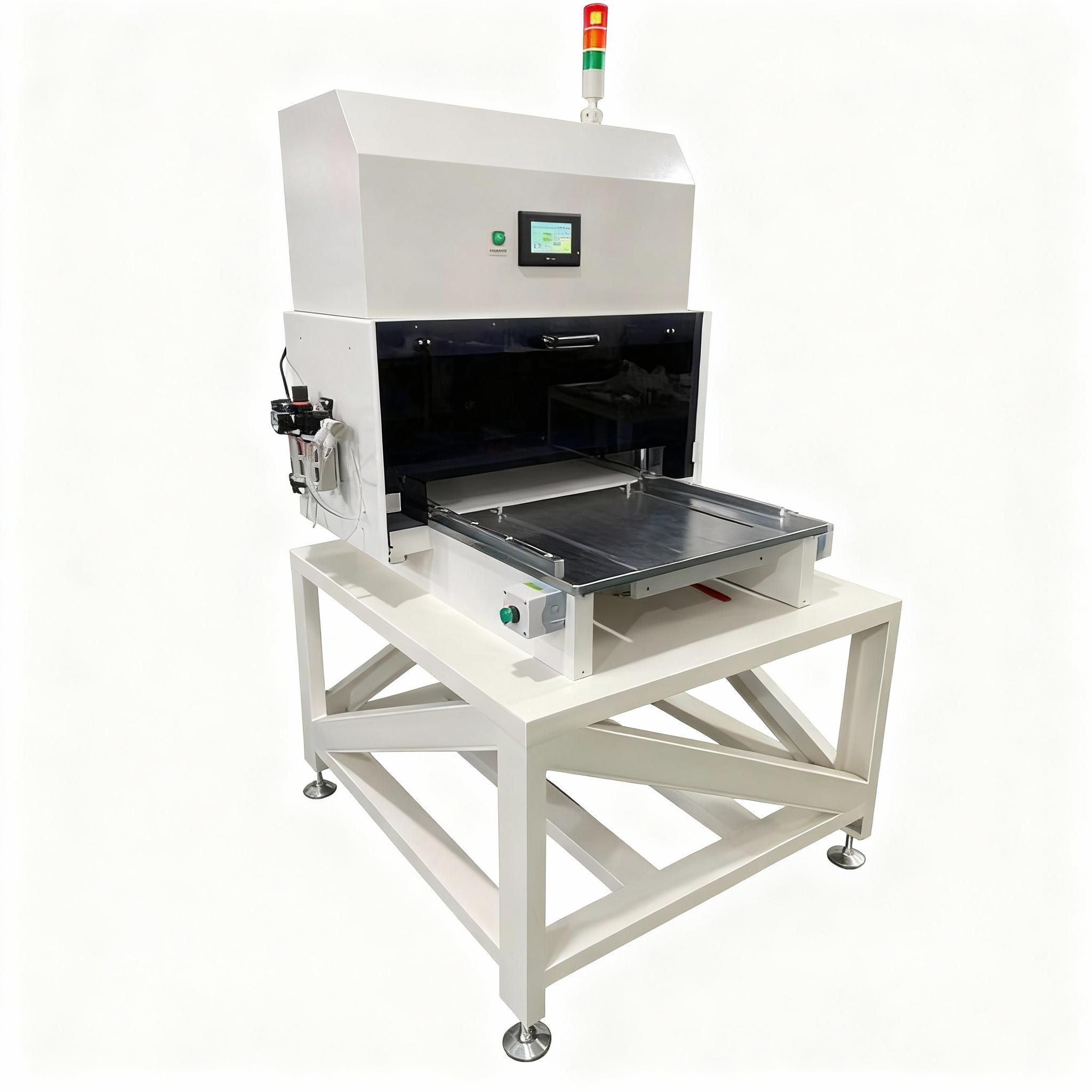

Automatic Rigid PCB Punching Machine Pneumatic,PCB Depaneling Equipment
PCB punching tool:
1,Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
2,Use punching mould to cut with high efficiency
3.Can replace multiple mold for production and mold changing easily
4.The operation is simple and safe
PCB punching tool specifications:
| Model |
CWPE |
| Punch Contribute (T) |
3 (can custom made up to 30T) |
| Working area (mm) |
330*220 (can custom made) |
| Voltage(V) |
110/220 |
| Working air pressure(Mpa) |
0.5-0.7 |
| PCB punching tool size (mm) |
730*810*1700 |
| PCB punching tool weight (kg) |
530 |
PCB punching tool features:
1.Machine has strong structure and moves easily with 4 Casters.
2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.
Chuangwei PCB punching tool
***From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kind PCB cutting machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB cutting machine base your actual requires.
***PCB cutting machine mainly applies to cut various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB, Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB,Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
